Canon TS-E 90mm f/2.8L Macro Review

Canon TS-E 90mm f/2.8L Macro Handling and Features

Taking our tour of the lens from the front, a wide, round lens hood bayonets cleanly into place. There is no chance of this accidentally coming adrift from the lens, thanks to the precise fit and the provision of a locking catch. There is a standard filter thread taking 77mm filters. The lens does not rotate during focusing, so the use of polarising and graduated filters is facilitated.

Behind this is the wide, ribbed manual focus ring. The lens is manual focus only and adding AF would not really be practical, nor is it particularly missed considering the uses the lens is put to. The action is silky smooth and the image snaps in and out of focus very easily, a benefit of short telephoto lenses in general. The distance scale is marked in feet and metres, although the figures are very small and some may have difficulty deciphering them. The depth of field scale is also very small and not particularly useful. Magnification ratios are also marked on the scale. Focusing is down to 39cm, or 15.4 inches, which represents a maximum magnification of 1:2 or 0.5x. This is also termed half life size, and is quite an exciting bonus for any 90mm optic and especially so for a tilt and shift lens.

For those who need closer focus, extension tube EF12 II enables a magnification of 0.64x – 0.15x. Closer still, extension tube EF25 II gives a magnification range of 0.82x – 0.32x. These tubes are of course optional extras. The lens is not compatible with extenders.

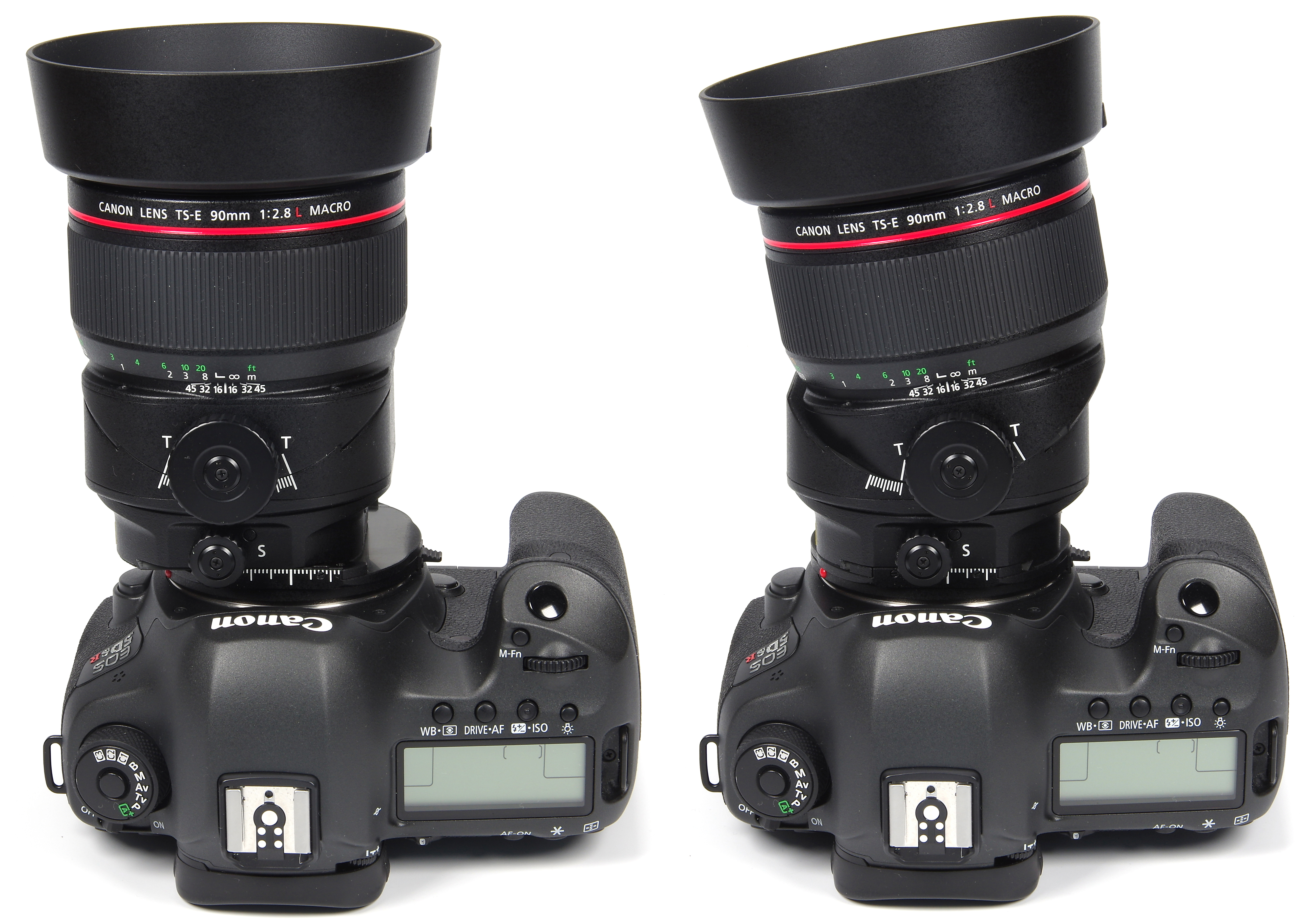

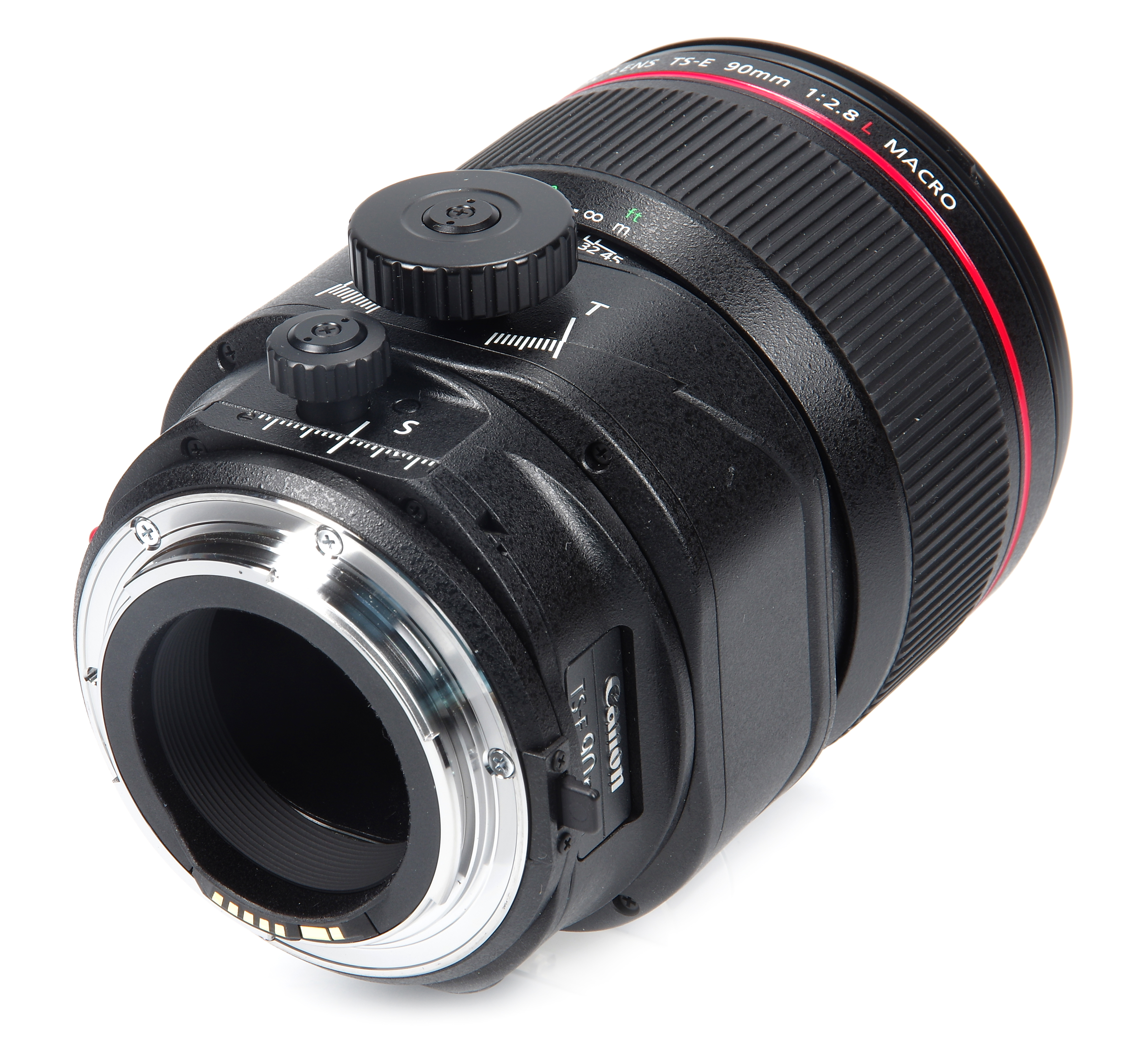

Moving closer to the camera body, we find the tilt mechanism. This is controlled by a large knob on the top of the lens, where we also see clear markers indicating the degree of tilt. The underside of the lens has the locking mechanism so that the tilt is not accidentally engaged. Tilt is available over a range of plus or minus 10 degrees.

Next is the shift control, which is also provided with a locking mechanism. The action of both tilt and shift is very smooth, giving a very reassuring feel that exudes a sense of quality and precision. The lens can be shifted plus or minus 12mm.

In addition to this there are two catches that release the rotation of the tilt and shift positions. These can be adjusted individually so that the direction of tilt or shift can be selected. Endless possibilities exist.

Lens construction is 11 elements in 9 groups, including aspherical and UD (Ultra Low Dispersion) elements. The lens diaphragm comprises 9 blades, although there is no control of this on the lens. Aperture settings are controlled by the camera. The latest canon Subwavelength Structure and Air Sphere coatings are employed.

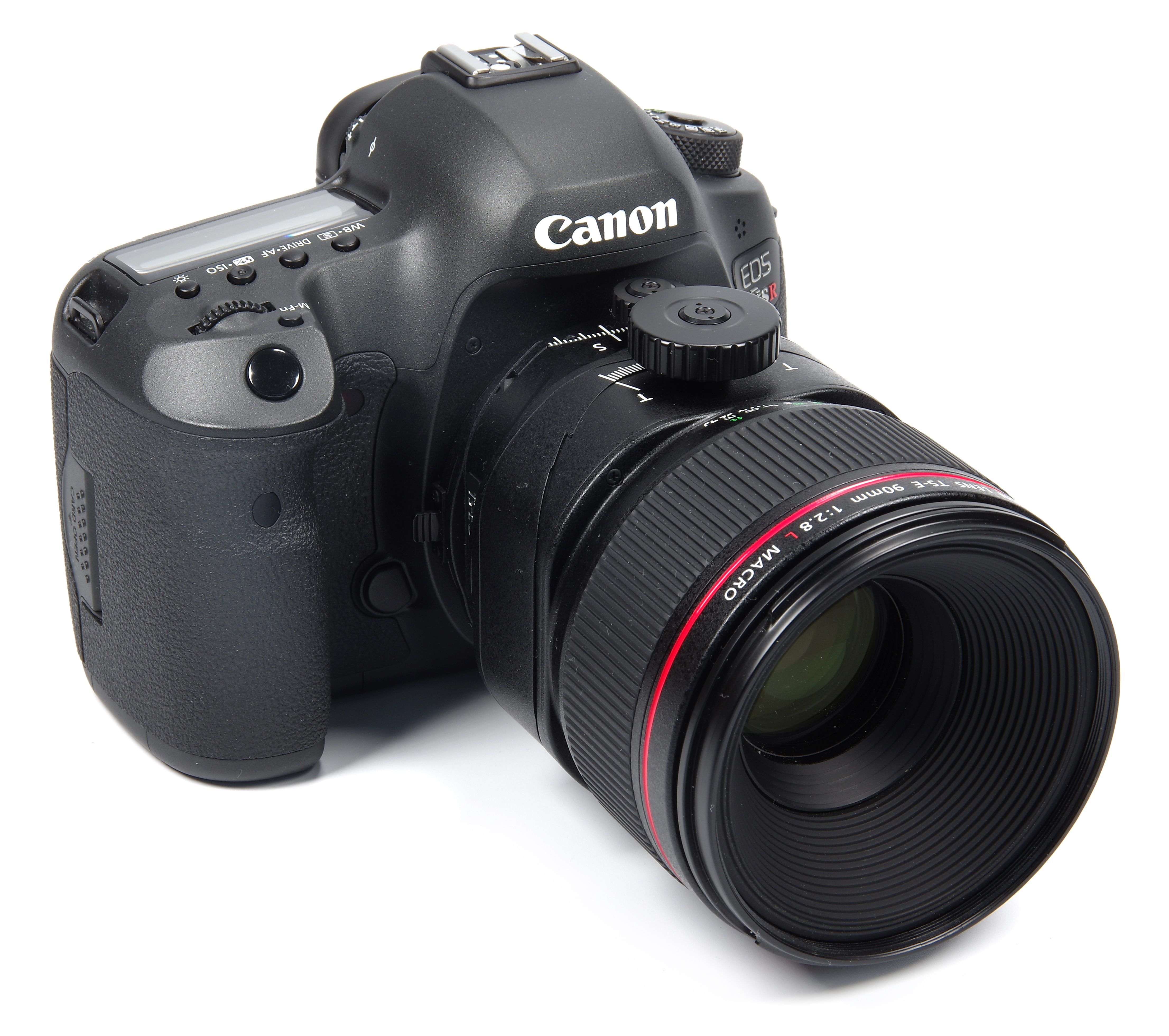

For a 90mm f/2.8 lens, this all results in a very hefty 915g package, although it does balance very well with the EOS 5S SR used for this review. For use of the tilt shift mechanisms, it is quite likely that a tripod will be best, and as the lens has manual focus only that also means that focus can be very accurately set. Despite quite a short throw of the focusing ring, finding a precise point of focus is very easy.

Tilt and shift lenses and architecture almost go hand in hand, but with a longer focal length such as this the perspective we have does not tend to offer the same problems as with a wider lens. We are simply further away and converging verticals are not the same issue.

However, moving closer and into the macro range different possibilities open up. For example, even with portraiture greater control over the point of focus on the eyes can enable wider apertures to be used at an angle and backgrounds will still fall well out of focus in a way that would not happen when stopped down. Canon offer portraiture as one of the benefits of the lens and it does work out in practice.

Close ups, and Canon quote product photography, also benefit from the control over the plane of focus and this holds true right down to macro distances. New effects can be found and creatively the lens opens up lots of new ideas and possibilities.

In terms of handling it all works very well and we soon find our way around the various controls, everything operating reliably and smoothly.
